Equipment  developed and manufactured in our facilities

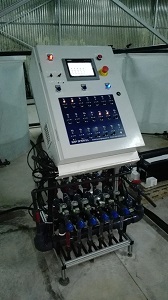

Fertigation machine Features

– Dosage of soluble fertilizer in relation to the EC in the water and/or by percentage, By volume (flow meter is neccesary)
– PH control of irrigation water
– Ability to adapt to all types of facilities, flow and pressure
– All available languages (also available in Arabic)
– Intuitive and easy to use touch screen full colour.
– PLC Programmer with standard irrigation programs as much as customer needs (unlimited)
– Control valve , controller unlimited in valves of each program (standard)
– Minimum of 10 activations per day for each valve, by frecuency or demand with humidity probe according with media cultivation. By radiation and by weight.
– Radio, wifi, Gprs remote control open field solenoid valves

– Can be connected to PC
– Ability to download the historic irrigation (By CSV)
– Ability to control the filling of the tank irrigation
– Pressure safety
– Selector Valve (manual – stop – automatic )
– Selectors fertilizer injector (manual on-off – automatic )
– From 4 injectors to a number according to customer needs
– Stainless steel 316 or aluminum bench
– Digital controller guaranteed with working temperature up to 55 degrees Celsius ( possibility of up to 70 degrees Celsius)
–  remote assistance
– Possible extension (programs and valves ) according to future needs of customers
– Flowmeter
– Pressure sustaining Valve
– Remote control through customer mobile, PC, tablet



Standard Equipments

SIAP8V04+1 with following equipments (smallest fertigation machine)

Hardware (totally expandable, can be taylored)

  • 8 valves M-0-A in panel board, possibility to expand until 16 valves
  • Control 2 pumps (1 stand by, M-0-A)
  • Mixing system for fertilizer tanks (M-0-A)
  • Outlet or inlet installation
  • 3 fertilizer injector (250L/h)
  • 1 injector for pH Control
  • Acid/base control
  • Special pump for high visvosity fertilizer 100L/h
  • Control Ec and pH (2 sensors)
  • Alarm EC and pH
  • Digital over pressure control and alarm
  • Automatic filtration backwash control
  • Possibility to remote control through movil, tablet or PC
  • Water level storage tank, and others

Software (unlimited)

  • Fertilizer Formula recipe (unlimited as customer needs)
  • Programs (unlimited as customer needs)
  • Valves digital activations (unlimited as customer needs)
  • Data recording (excell sheet by CSV)
  • Possibility to remote control
  • Teleservice
  • No software for PC connection is neccesary
